Products / Access Panels / Acudor / Recessed Access Panels


DW-5015 DW-5015 DW-5015
Last Modified: 2019-03-04

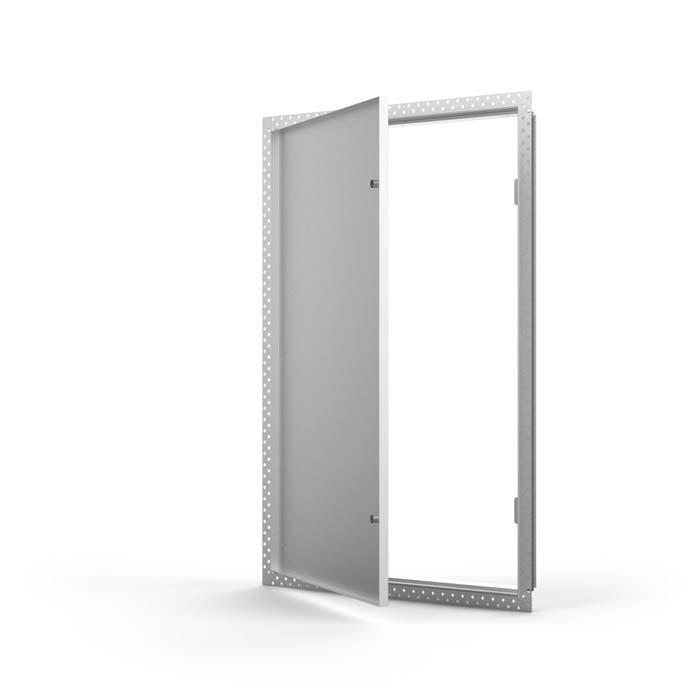

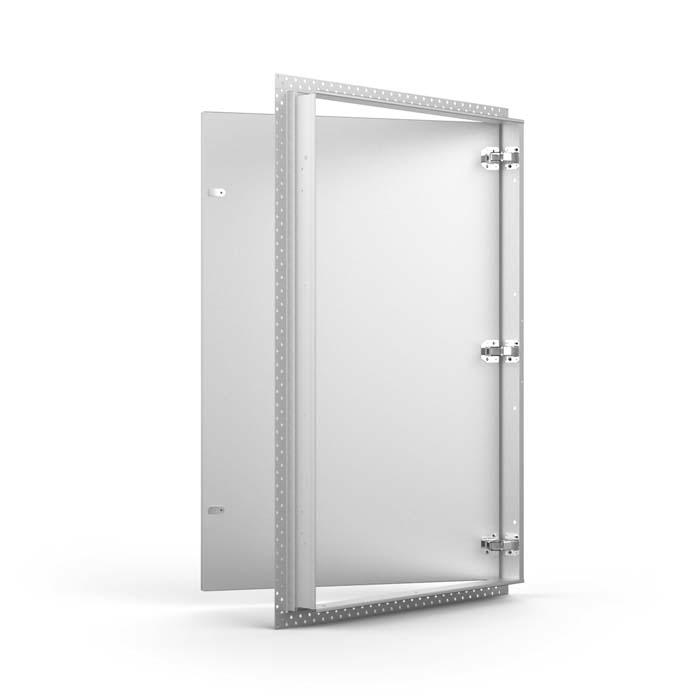

DW-5015

Features

  • For installation in drywall surfaces when it is required to conceal the door panel
Submittal
Product Information



ItemMMRough OpeningLBSKGQTY
DW-5015 12 X 12305 X 305+ 3/8"8.53.9Add To Quote
DW-5015 18 X 18457 X 457+ 3/8"156.8Add To Quote
DW-5015 24 X 24610 X 610+ 3/8"2310.4Add To Quote
DW-5015 24 X 36610 X 914+ 3/8"3013.8Add To Quote

DW-5015

Product Features

  • Recessed 5/8" to receive drywall
  • Door flange is a textured galvanized steel taping bead with pre-punched holes

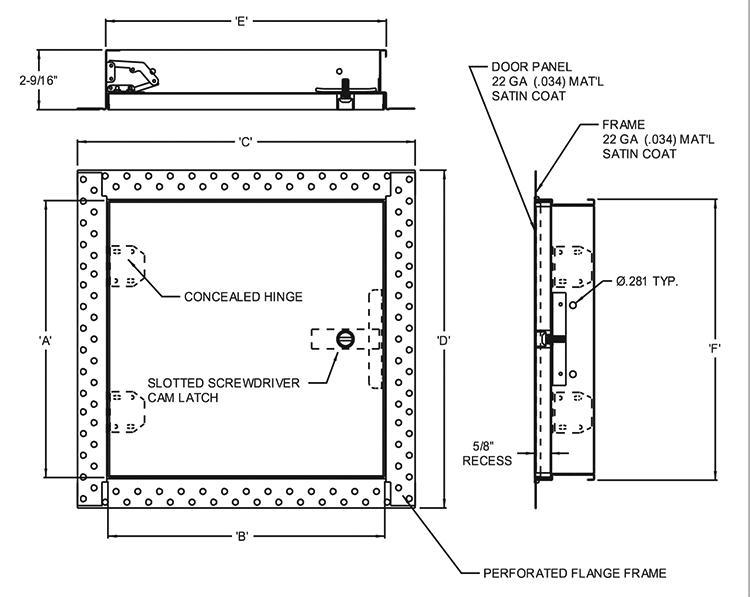

DW-5015 Access Door Specifications

Material: Steel Door 22 gauge, Mounting Frame: 22 gauge

Door:  Recessed 5/8"

Door Frame: Galvanized steel drywall taping bead on all sides

Hinge: Concealed.

Standard Latch:  Slot Screwdriver operated cam latch

Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head cam latch

Finish:  Satin coat steel


See the Datasheet for more product information.
