Products / Access Panels / GFRG Fiberglass


Radius Hinged Touch Latch Radius Hinged Touch Latch
Last Modified: 2018-01-03

Radius Hinged Touch Latch

Features


  • Virtually invisible access opening (only 1/16" continuous seam)
  • Clean, continuous surfaces without visible hardware
  • Apply your choice of surface treatments directly to the frame and panel door
  • Available in Radius or Square Corner designs
  • Concealed mechanical touch-latch and spring loaded concealed hinges
  • Free of moisture, sagging, mold, cracking, warping, lightweight
  • Panels remain attached to the frame
  • Perimeter neoprene gasket attached to continuous frame, air and smoke tight – (extra)



ItemAccess Door
Opening Size
Outside
Dimension
QTY
RADIUS HINGED TOUCH8" X 8"14" X 14"Add To Quote
RADIUS HINGED TOUCH9" X 9"15" X 15"Add To Quote
RADIUS HINGED TOUCH12" X 12"18" X 18"Add To Quote
RADIUS HINGED TOUCH16" X 16"22" X 22"Add To Quote
RADIUS HINGED TOUCH18" X 18"24" X 24"Add To Quote
RADIUS HINGED TOUCH20" X 20"26" X 26"Add To Quote
RADIUS HINGED TOUCH24" X 24"30" X 30"Add To Quote
RADIUS HINGED TOUCH30" X 30"36" X 36"Add To Quote
RADIUS HINGED TOUCH36" X 36"42" X 42"Add To Quote
RADIUS HINGED TOUCH42" X 42"48" X 48"Add To Quote
RADIUS HINGED TOUCH48" X 48"54" X 54"Add To Quote
RADIUS HINGED TOUCH12" X 16"18" X 22"Add To Quote
RADIUS HINGED TOUCH12" X 24"18" X 30"Add To Quote

Radius Hinged Touch Latch


Hinged Access Panel with Touch Latch

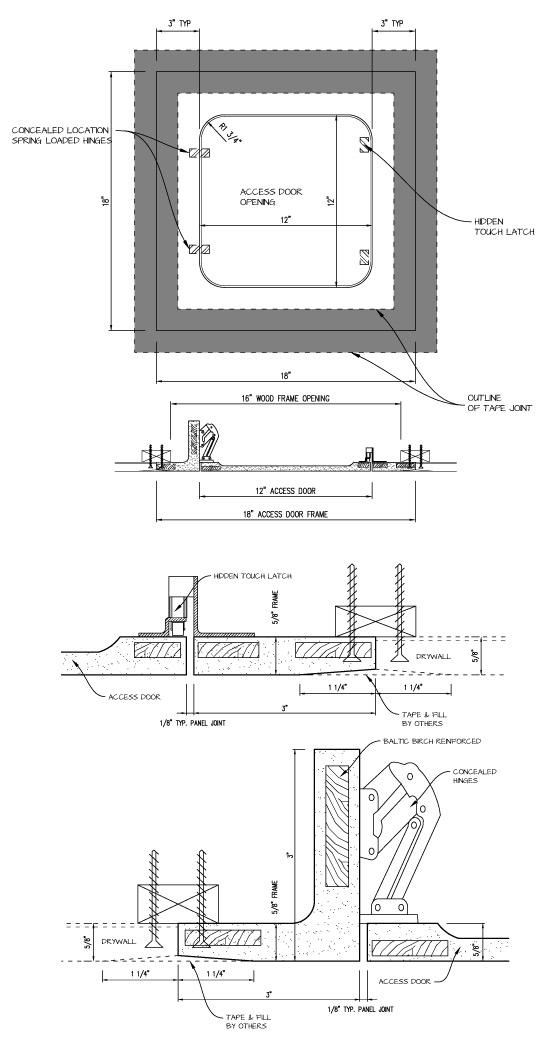

Our innovative Castle TL (Touch Latch) GFRG Access Panel blends seamlessly into wall or ceiling. Consisting of a frame and panel door it simply opens with our Pushing firmly in the corner in an upward motion to disengage the European Touch Latch hardware from the back side of the panel door. Once installed and finished to match the existing surround surface, a clean equal tight seam is all that remains visible.

A continuous neoprene gasket in the frame guarantees acoustic, smoke and air tight seal. (Extra)

Available in GFRG (Interior) or GFRC (Exterior)

  • Drywall, plasterboard, wallboard, gypsum board, sheetrock, gyprock or stucco
  • All assemblies clad in wallboard 5/8" (Shim 1/2" drywall where it meets the frame)
  • Wall or Ceiling Applications
  • New Construction or Retrofit
  • This product is Class A Non Rated
  • ASTM E84-80
  • ASTM E1264-08
