| Item | MM | Rough Opening | LBS | KG | QTY | |
|---|---|---|---|---|---|---|
| FB-5060-DW 8 X 8 | 203 X 203 | + 3/8" | 5.5 | 2.5 | Add To Quote | |
| FB-5060-DW 10 X 10 | 254 X 254 | + 3/8" | 6.7 | 2.9 | Add To Quote | |
| FB-5060-DW 12 X 12 | 305 X 305 | + 3/8" | 8.3 | 3.8 | Add To Quote | |
| FB-5060-DW 14 X 14 | 355 X 355 | + 3/8" | 9.5 | 4.3 | Add To Quote | |
| FB-5060-DW 16 X 16 | 406 X 406 | + 3/8" | 11.5 | 5.2 | Add To Quote | |
| FB-5060-DW 18 X 18 | 457 X 457 | + 3/8" | 14.3 | 6.5 | Add To Quote | |
| FB-5060-DW 22 X 30 | 560 X 762 | + 3/8" | 32.5 | 14.5 | Add To Quote | |
| FB-5060-DW 22 X 36 | 560 X 914 | + 3/8" | 28 | 12.7 | Add To Quote | |
| FB-5060-DW 24 X 24 | 610 X 610 | + 3/8" | 20.3 | 9.2 | Add To Quote | |
| FB-5060-DW 24 X 36 | 610 X 914 | + 3/8" | 28.5 | 12.9 | Add To Quote | |
| FB-5060-DW 24 X 48 | 610 X 1220 | + 3/8" | 34 | 15.4 | Add To Quote | |
| FB-5060-DW 30 X 30 | 762 X 762 | + 3/8" | 28.5 | 12.9 | Add To Quote | |
| FB-5060-DW 36 X 36 | 914 X 914 | + 3/8" | 38 | 17.2 | Add To Quote | |
| FB-5060-DW 36 X 48 | 914 X 1220 | + 3/8" | 47.5 | 21.5 | Add To Quote |
Product Features
Recessed ½” and is lined with self-furring lath
Designed to maintain continuity in a 2-hour fire barrier wall
Self closing
Self latching
Inside latch release

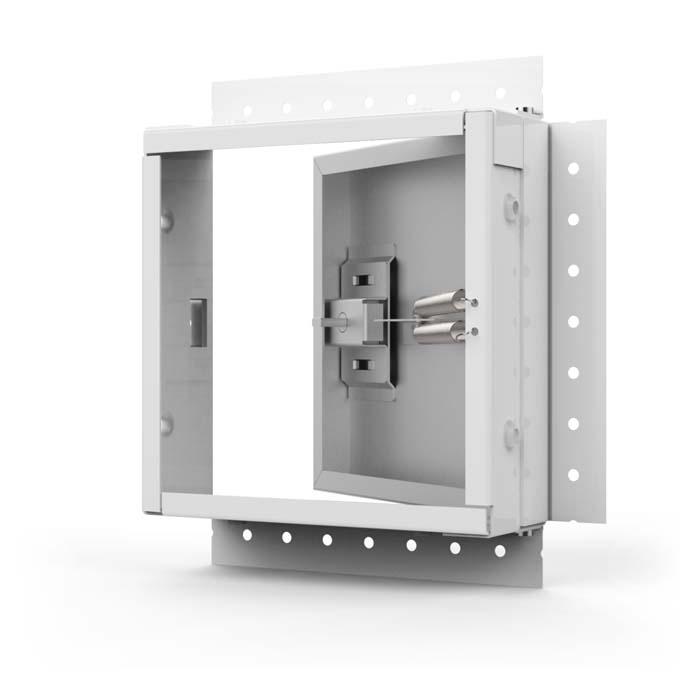

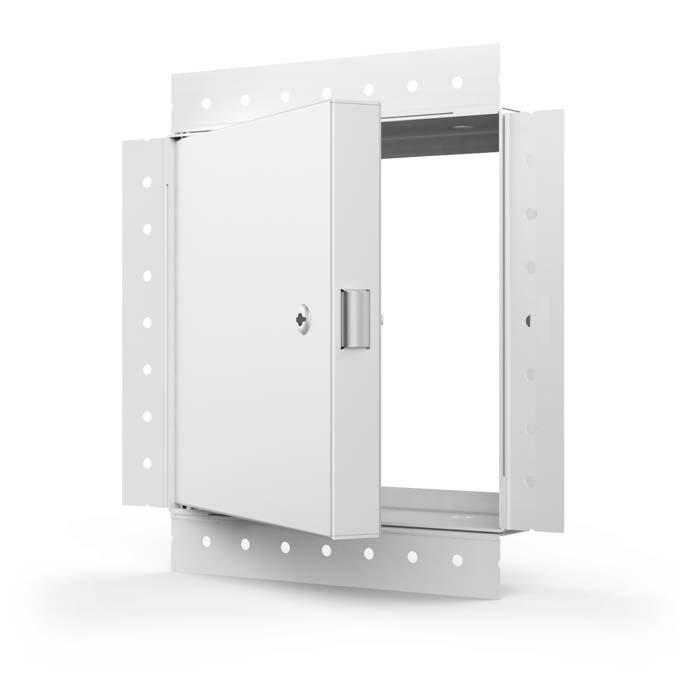

FB-5060-DW Access Door Specifications
Material: Steel
Door: 16 gauge with reinforced edges, door panel recessed 1/2” and lined with self-furring lath.
Mounting Frame: 16 gauge steel
Hinge: Continuous exposed piano hinge
Fire Rating (Walls): UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. (optional) Max size 36 x 48
Standard Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
Finish: Steel: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
See the Datasheet for more product information.
