FW-5050-UP

Features

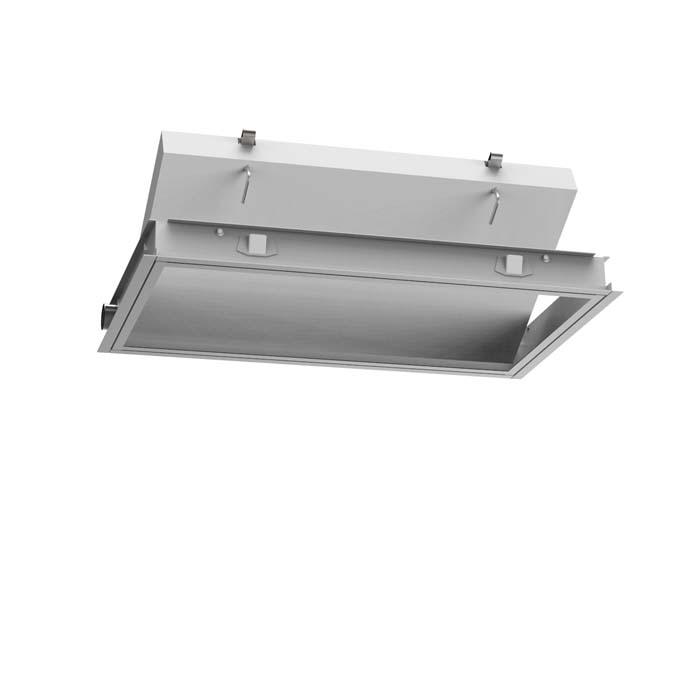

An insulated, fire rated access door for inward opening in ceilings

Submittal

Product Information

Item	MM	Rough Opening	LBS	KG
FW-5050-UP 22 X 30	560 X 762	+ 1/2"	34	15.4	Add To Quote
FW-5050-UP 22 X 36	560 X 914	+ 1/2"	35	15.9	Add To Quote
FW-5050-UP 24 X 24	610 X 610	+ 1/2"	28	12.7	Add To Quote
FW-5050-UP 24 X 36	610 X 914	+ 1/2"	38	18.1	Add To Quote

FW-5050-UP

Product Features

For fire rated ceilings, this door has been approved by Warnock Hersey International for 3 hours (max. size to 24” x 36”)
Insulated Door Panel
Self-Closing
Self-Latching
Inside Latch Release

FW-5050-UP Access Door Specifications

Material: Steel or Stainless Steel Door: 16 gauge, Flush to frame with reinforced edges filled with 2” thick fire insulation

Mounting Frame: 16 gauge mounting frame, with trim 1" wide

Hinge: Concealed with coil spring for dampening

Fire Rating: For walls: UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. Max size: 24 x 36. For Ceilings: Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling. Max size: 24x 36

Standard Latch: L Handle - operable from both sides

Finish: Steel: 5 stage iron phosphate preparation with prime coat of white baked-on enamel.

Stainless Steel: Type 304 - #4 satin polish

See the Datasheet for more product information.
