| Item | MM | Rough Opening | LBS | KG | QTY | |
|---|---|---|---|---|---|---|
| MS-7000 12 X 12 | 305 X 305 | + 3/8" | 14 | 6.4 | Add To Quote | |
| MS-7000 16 X 16 | 406 X 406 | + 3/8" | 20 | 9.1 | Add To Quote | |
| MS-7000 18 X 18 | 457 X 457 | + 3/8" | 26 | 11.8 | Add To Quote | |
| MS-7000 24 X 24 | 610 X 610 | + 3/8" | 34 | 15.4 | Add To Quote | |
| MS-7000 24 X 36 | 610 X 914 | + 3/8" | 55 | 25 | Add To Quote | |
| MS-7000 36 X 36 | 914 X 914 | + 3/8" | 80 | 36.4 | Add To Quote |
Product Features

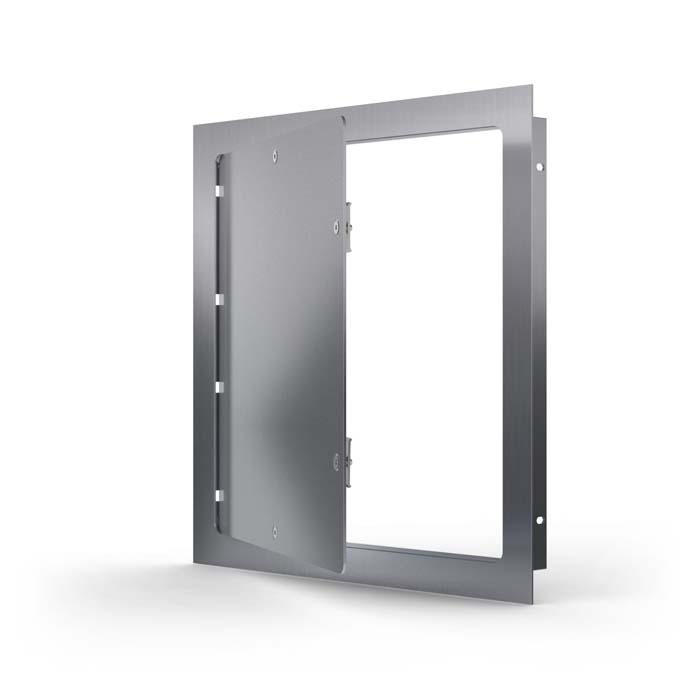

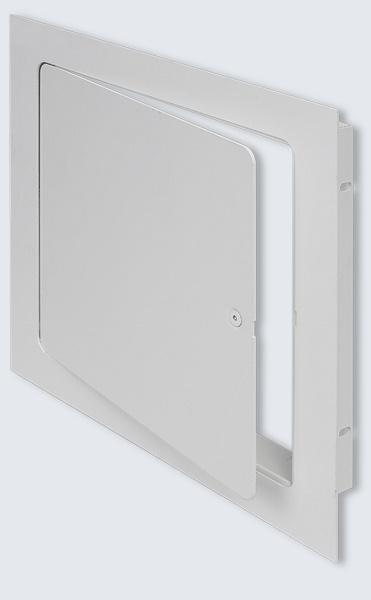

MS-7000 Access Door Specifications
Material: Stainless Steel or Steel
Door / Mounting Fram: 12 gauge door and mounting frame. Flush to frame with rounded corners and reinforced panel. One piece outer flange welded to mounting frame
Hinge: Continuous, concealed
Standard Latch: Tamper resistant allen head cam latch with security pin
Optional Latches/Locks: Spanner head cam latch, cylinder lock & key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
Finish: 5 stage iron phosphate preparation with prime coat of White alkyd baking enamel. Stainless Steel: Type 304 #4 satin polish.
See the Datasheet for more product information.
