Inquire
| Item | MM | Rough Opening | LBS | KG | QTY | |
|---|---|---|---|---|---|---|
| SD-6000 12 X 12 | 305 X 305 | + 5/8" | 22 | 10 | Add To Quote | |
| SD-6000 16 X 16 | 406 X 406 | + 5/8" | 30 | 13.8 | Add To Quote | |
| SD-6000 18 X 18 | 457 X 457 | + 5/8" | 46 | 21 | Add To Quote | |
| SD-6000 24 X 24 | 610 X 610 | + 5/8" | 70 | 31.8 | Add To Quote | |
| SD-6000 24 X 36 | 610 X 914 | + 5/8" | 90 | 41 | Add To Quote | |
| SD-6000 36 X 36 | 914 X 914 | + 5/8" | 120 | 54.4 | Add To Quote |
Product Features

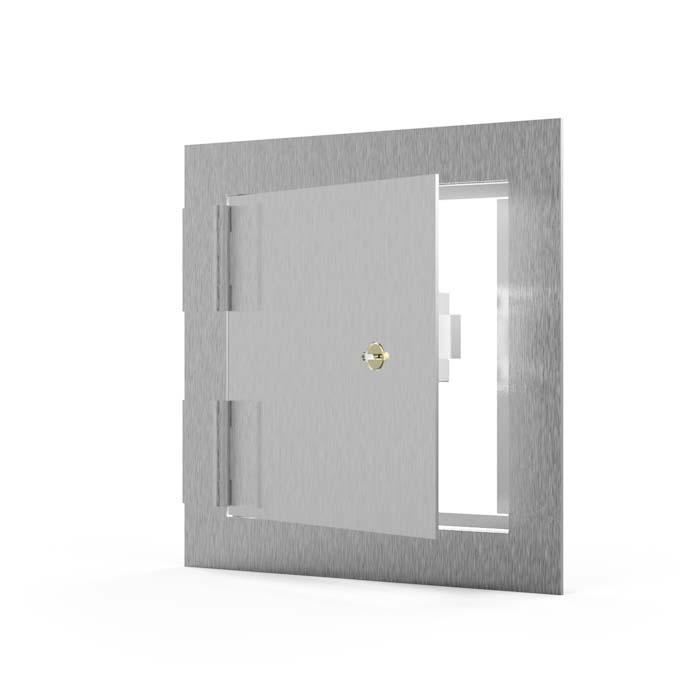

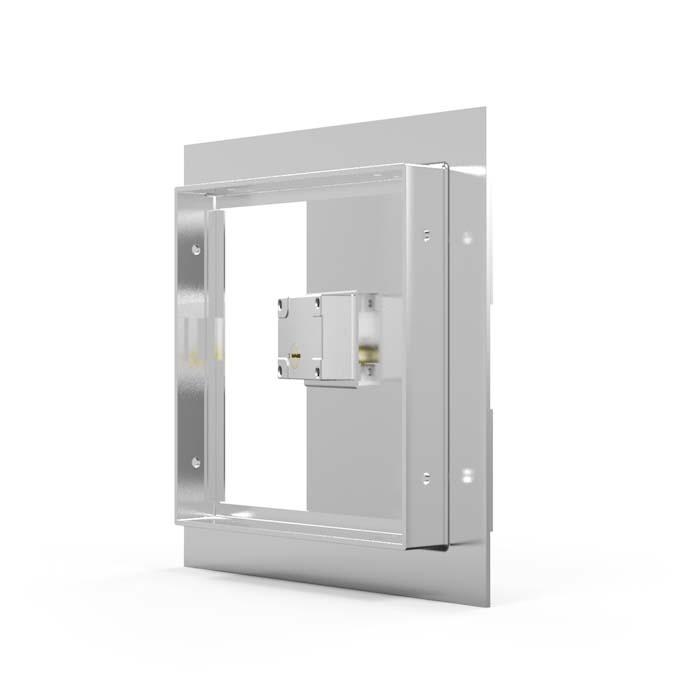

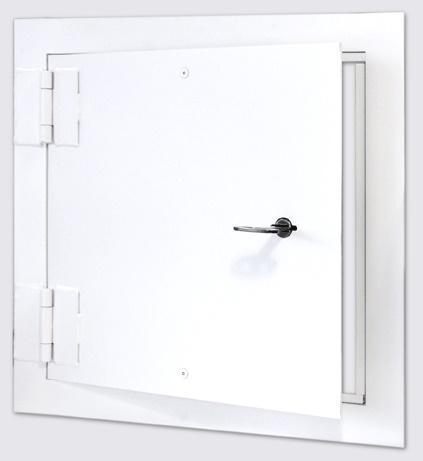

SD-6000 Access Door Specifications
Material: Steel or Stainless Steel
Door/Mounting Frame: Mounting Frame: Door 10 gauge (.134) plate & frame is 2x2x3/16 angle, security to edge of frame. Mounting frame to have anchor straps
Hinge: Heavy duty butt hinges, welded to door and frame
Standard Latch: Detention type deadbolt lock with paracentric key
Optional Latches/Locks: Tamperproof security cam latches, cylinder lock and key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
Finish: 5 stage iron phosphate preparation with prime coat of White alkyd baking enamel. Stainless Steel: #4 satin polish
See the Datasheet for more product information.
