| Item | MM | Rough Opening | LBS | KG | QTY | |
|---|---|---|---|---|---|---|
| UF-5500 6 X 6 | 152 X 152 | + 3/8" | 1.5 | .68 | Add To Quote | |
| UF-5500 8 X 8 | 203 X 203 | + 3/8" | 2 | .91 | Add To Quote | |
| UF-5500 12 X 12 | 305 X 305 | + 3/8" | 2.5 | 1.14 | Add To Quote | |
| UF-5500 15 X 15 | 381 X 381 | + 3/8" | 5.5 | 2.5 | Add To Quote | |
| UF-5500 18 X 18 | 457 X 457 | + 3/8" | 7.5 | 3.41 | Add To Quote | |
| UF-5500 24 X 24 | 610 X 610 | + 3/8" | 12 | 5.45 | Add To Quote |
Product Features

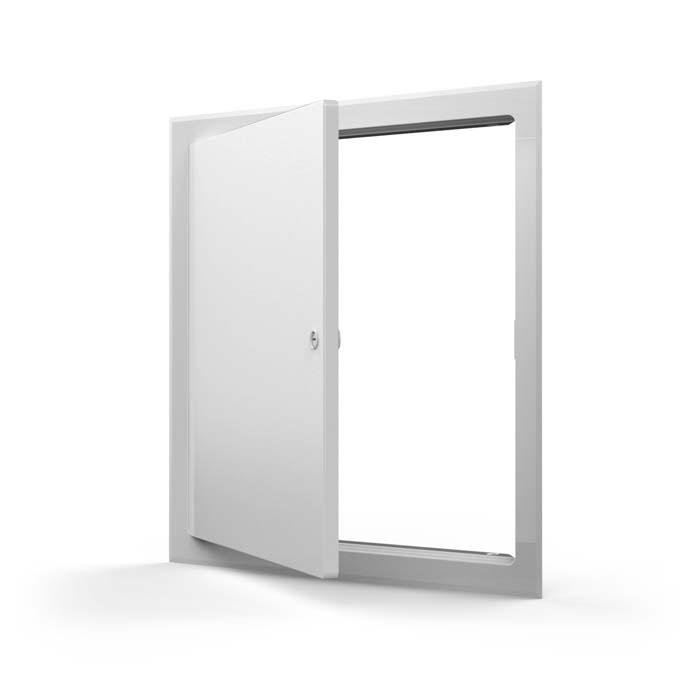

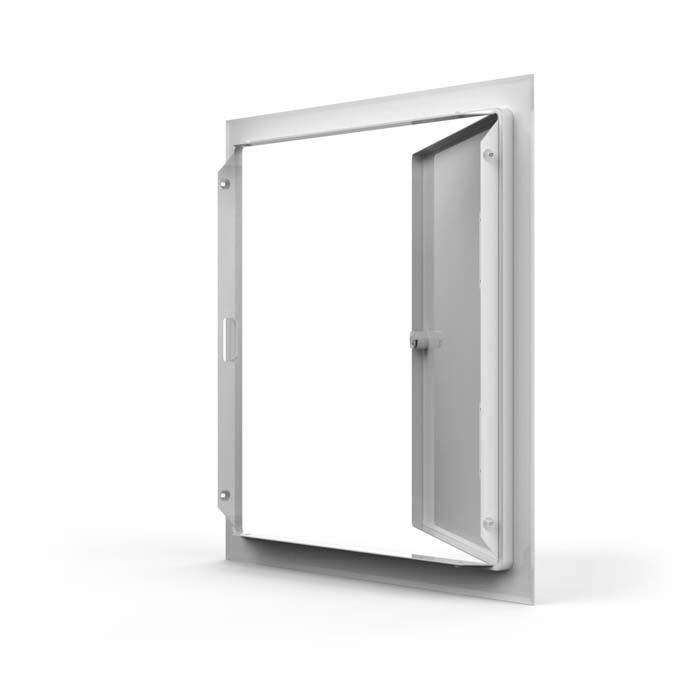

UF-5500 Access Door Specifications
Material: 12” x 12” and smaller are 20 gauge galvanized steel door & frame. Over 15” x 15” and larger are 18 gauge galvanized steel door & frame Door: Flush To Frame- Drawn flanged door panel with rounded corners
Door Frame: Drawn one piece trim flange and mounting frame
Hinge: Concealed
Standard Latch: Slot Screwdriver operated cam latch
Optional Latches/Locks: Cylinder lock and key; allen spanner or torx head cam latch
Finish: White baked on polyester powder coat
See the Datasheet for more product information.
