Last Modified: 2018-01-17

Utility

Features

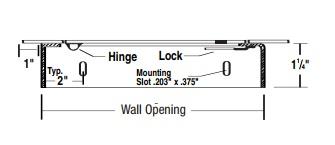

  • Door and Trim: 16 ga. steel. Trim being 1-1/2" wide
  • Return Frame: 16 ga. steel having a depth of 1-1/4"
  • Hinge: One piece hidden pivot rod hinge
  • Latches: Flush, stainless steel cam operated with screwdriver. Latches are positioned opposite hinge as well as top and bottom on larger sizes
  • Finish: Electrostatically applied baked grey enamel coat over rust-inhibiting phosphate treated steel. This coating can be used as a finish or as a prime coating
  • Packaging: By the case; 5 doors per case, except 24” x 24” size — 3 per case, or individually boxed
  • Optional Available: (AT EXTRA COST) • Keyed Cylinder Lock with 2 keys • Stainless Steel #304



Door SizeWall OpeningHingesCam LatchWeight (lbs)QTY
WB-UAD 6" X 6"+ 1/8"111.5Add To Quote
WB-UAD 8" X 8"+ 1/8"112.5Add To Quote
WB-UAD 10" X 10"+ 1/8"114Add To Quote
WB-UAD 12" X 12"+ 1/8"115Add To Quote
WB-UAD 14" X 14"+ 1/8"136Add To Quote
WB-UAD 16" X 16"+ 1/8"137.5Add To Quote
WB-UAD 18" X 18"+ 1/8"139Add To Quote
WB-UAD 20" X 20"+ 1/8"1313Add To Quote
WB-UAD 24" X 24"+ 1/8"1415Add To Quote

Utility


WILLIAMS BROTHERS COMMERCIAL ACCESS DOORS

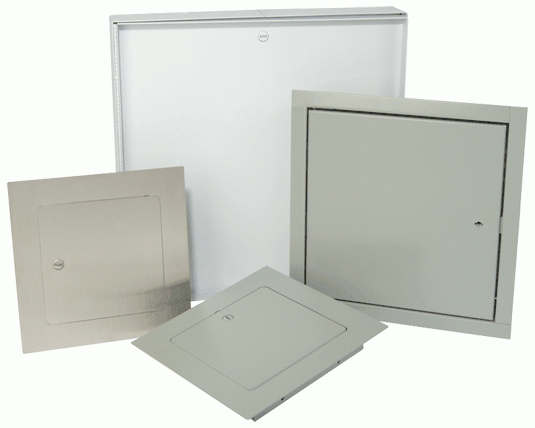

The Williams Brothers Corporation manufactures a large selection of access doors in a range of materials and finishes.

Products include basic, utility and premium general purpose access doors in primed or stainless steel., standard, premium and ceiling fire-rated models, recessed or special surface doors, and multiple levels of security doors.

The company’s success is a result of its flexibility and adaptability to changing demands of the marketplace and commitment to total customer satisfaction.
