Products / Access Panels / Acudor / Specialty Access Panels


ADWT Watertight/Air ADWT Watertight/Air ADWT Watertight/Air
Last Modified: 2019-03-04

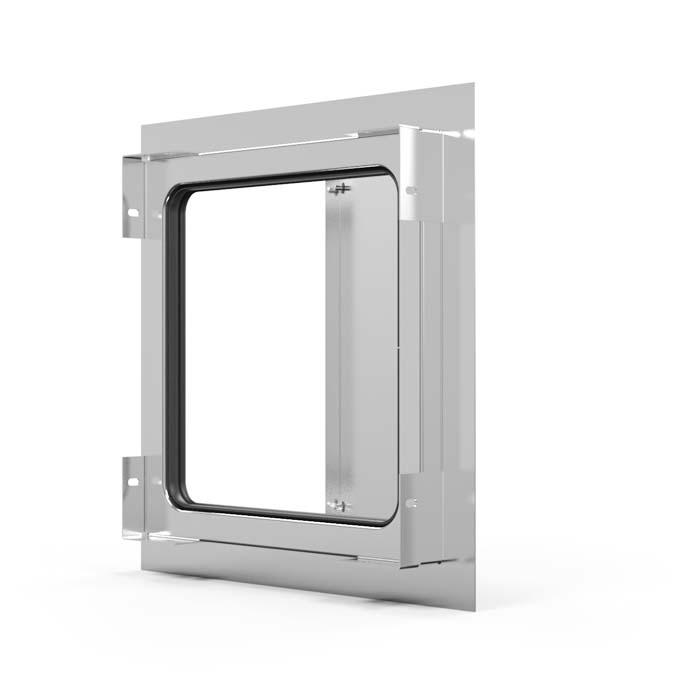

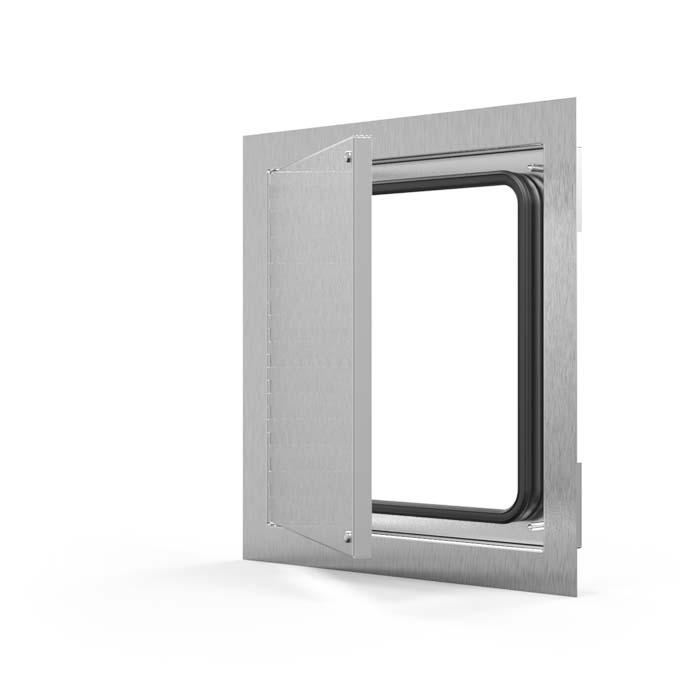

ADWT Watertight/Air

Features


  • This access door is ideal for use in laboratories, clean rooms, operating rooms, etc. where an airtight/watertight seal is required



ItemMMRough OpeningLBSKGQTY
ADWT 12 X 12305 X 305+ 3/8"83.6Add To Quote
ADWT 14 X 14356 X 356+ 3/8"115Add To Quote
ADWT 18 X 18457 X 457+ 3/8"156.8Add To Quote
ADWT 24 X 24610 X 610+ 3/8"2210Add To Quote
ADWT 24 X 36610 X 914+ 3/8"2913.1Add To Quote
ADWT 30 X 30762 X 762+ 3/8"3214.5Add To Quote
ADWT 30 X 48762 X 1219+ 3/8"4420Add To Quote

ADWT Watertight/Air


Product Features

  • ADWT is a flush access door that has been tested for air infiltration and water penetration
  • Air Infiltration : less than 0.01 cfm/sq foot – ASTM E 283
  • Water Penetration : no leakage at 15.05 psf – ASTM E 331
  • Door and Frame fully welded
  • Continuous Bulb Trim Gasket
  • Continuous Stainless Steel Piano Hinge

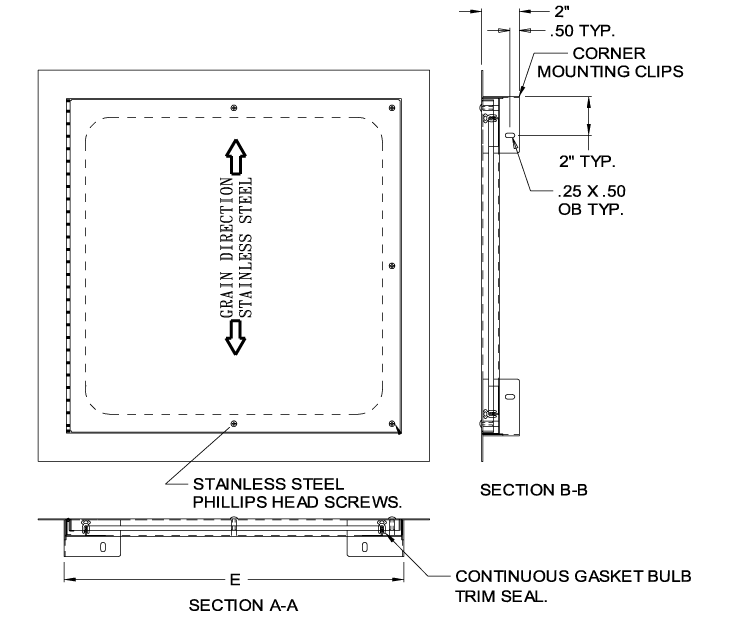

ADWT Access Door Specifications

Material: Stainless Steel or Steel

Door: 16 gauge; Mounting Frame: 16 gauge Door / Door Frame are flush to frame with reinforced edges.

Hinge: Continuous exposed stainless steel piano hinge

Gasket: Continuous Bulb Trim Seal

Standard Latch: Stainless Steel phillips head screws standard

Optional Latches/Locks: stainless steel allen head screws, stainless steel spanner head screws, torx, cylinder lock & key

Finish:  Stainless Steel ; #4 satin polish Steel : 5 stage iron phosphate with prime coat of White alkyd baked-on enamel



See the Datasheet for more product information.
