Products / Access Panels / Acudor / Specialty Access Panels


LT-4000 Aluminum LT-4000 Aluminum LT-4000 Aluminum
Last Modified: 2019-03-04

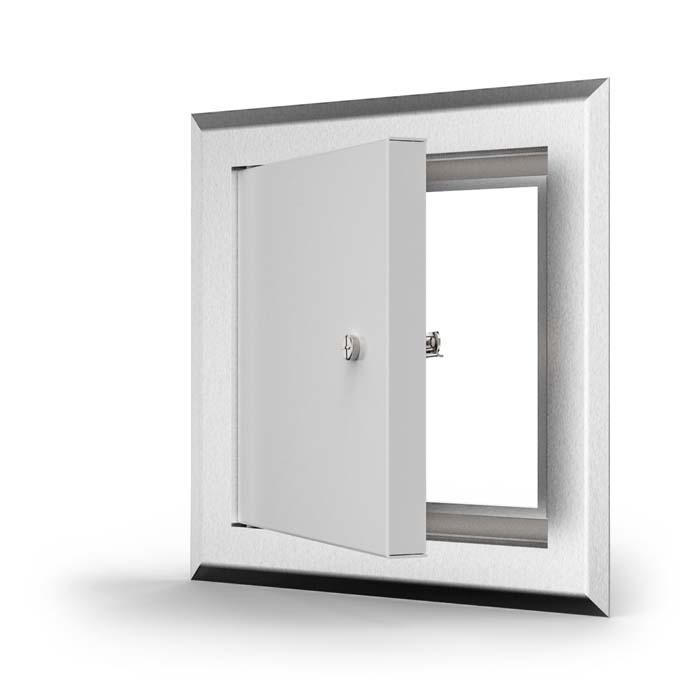

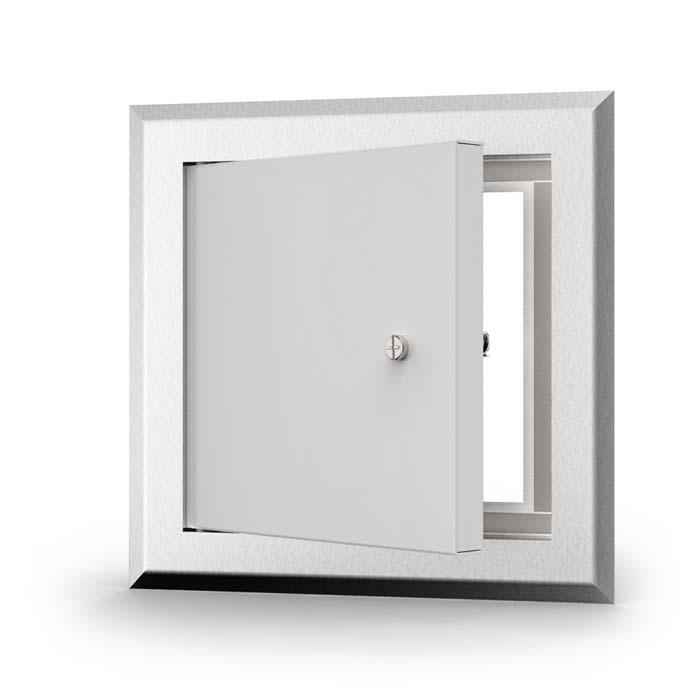

LT-4000 Aluminum

Features


  • Lightweight aluminum access door for walls and ceilings



ItemMMRough OpeningLBSKGQTY
LT-4000 8 X 8203 X 2032.9Add To Quote
LT-4000 10 X 10254 X 25431.4Add To Quote
LT-4000 12 X 12305 X 30541.8Add To Quote
LT-4000 14 X 14355 X 35552.3Add To Quote
LT-4000 16 X 16406 X 40652.5Add To Quote
LT-4000 18 X 18457 X 45762.7Add To Quote
LT-4000 24 X 24610 X 61094.1Add To Quote
LT-4000 24 X 36610 X 914125.5Add To Quote
LT-4000 24 X 48610 X 1220167.3Add To Quote
LT-4000 30 X 30762 X 762125.5Add To Quote
LT-4000 36 X 36914 X 914167.3Add To Quote
LT-4000 36 X 48914 X 1220219.6Add To Quote
LT-4000 48 X 481220 X 12202712.3Add To Quote
LT-4000 60 X 481524 X 12203415.5Add To Quote
LT-4000 72 X 481830 X 12204018.2Add To Quote

LT-4000 Aluminum


Product Features

  • Mitered aluminum frame provides an architecturally pleasing appearance

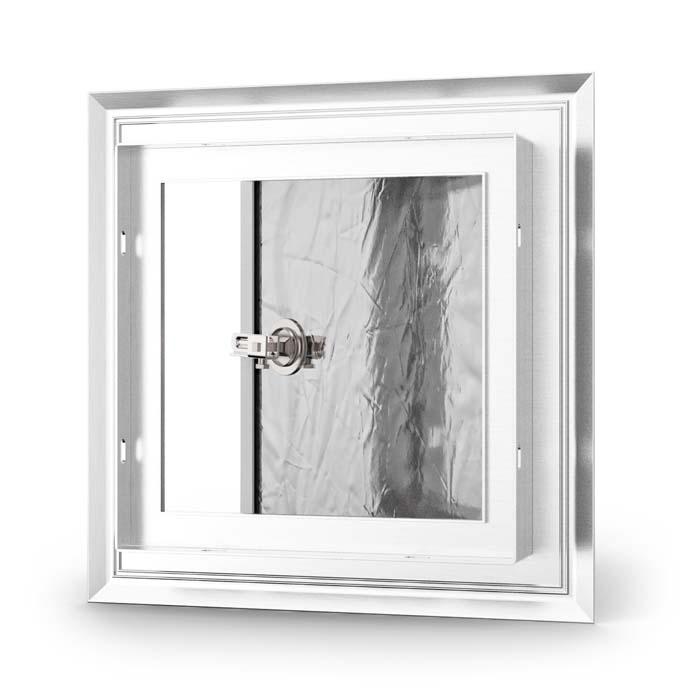

  • Aluminum door panel is lined with 3/4" polystyrene insulation
  • All aluminum construction is ideal for exterior applications, and specific interior applications where corrosion or moisture are a concern

LT-4000 Access Door Specifications

Material: Aluminum

Door: .064”, flush to edge of frame, 1-5/16” mitered aluminum extrusion flange

Mounting Frame: .080“, 1-1/2” deep

Hinge: Doors with width 24” or less to have concealed pin hinge. Doors with width over 24” to have continuous aluminum piano hinge with exposed knuckle, set to open to 180 degrees.

Insulation: 3/4” Type 3 Expanded Polystyrene (EPS) Foil Lined Insulation, with a 3.18 R Value.

Gasket: 1/8” x 3/8” closed cell neoprene gasketing

Standard Latch: Screwdriver operated cam latch

Optional Latches/Locks: cylinder lock & key

Finish: Mill finish




See the Datasheet for more product information.
