Products / Access Panels / Acudor / Specialty Access Panels


PS-5030 PS-5030 PS-5030
Last Modified: 2019-03-04

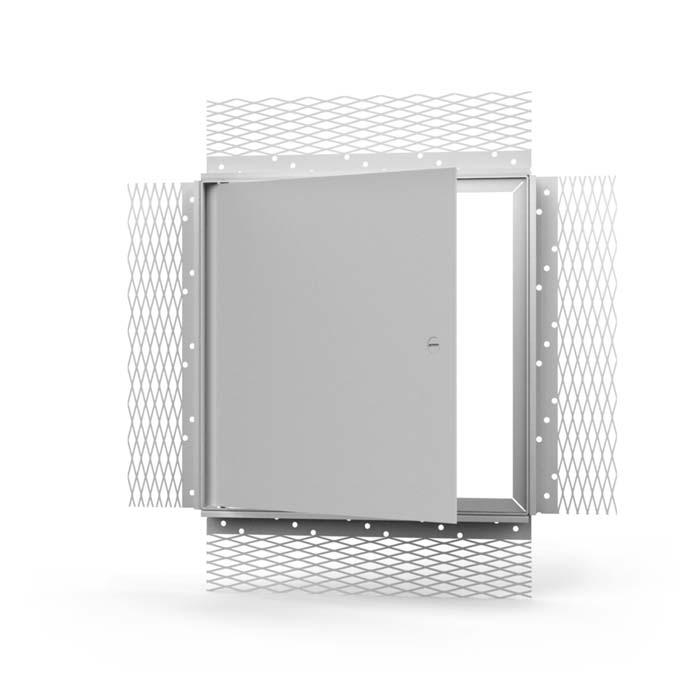

PS-5030

Features


  • Installation in plaster walls and ceilings, before the plaster is applied



ItemMMRough OpeningLBSKGQTY
PS-5030 6 X 6152 X 152+ 3/8"31.4Add To Quote
PS-5030 8 X 8203 X 203+ 3/8"3.51.5Add To Quote
PS-5030 10 X 10254 X 254+ 3/8"4.52Add To Quote
PS-5030 12 X 12305 X 305+ 3/8"62.7Add To Quote
PS-5030 14 X 14355 X 355+ 3/8"7.53.3Add To Quote
PS-5030 16 X 16406 X 406+ 3/8"9.54.2Add To Quote
PS-5030 18 X 18457 X 457+ 3/8"11.55.1Add To Quote
PS-5030 22 X 22560 X 560+ 3/8"156.7Add To Quote
PS-5030 24 X 24610 X 610+ 3/8"198.4Add To Quote
PS-5030 24 X 36610 X 914+ 3/8"2812.4Add To Quote
PS-5030 30 X 30762 X 762+ 3/8"27.512.5Add To Quote
PS-5030 36 X 36914 X 914+ 3/8"3917.7Add To Quote

PS-5030


Product Features

  • An expansion casing bead with 3” wide galvanized lath
  • Concealed continuous hinge

PS-5030 Access Door Specifications

Material: Door / Door Frame: 14 gauge

Mounting Frame: Formed door panel, flanged on four sides, flush to edge of frame expansion casing bead with 3" wide galvanized lath, recessed 3/4" to receive plaster

Hinge: Continuous, concealed

Standard Latch: Stainless steel slot screwdriver operated cam latch

Optional Latches/Locks: Cylinder lock & key, allen head cam latch, spanner head cam latch, torx

Finish: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel




See the Datasheet for more product information.
