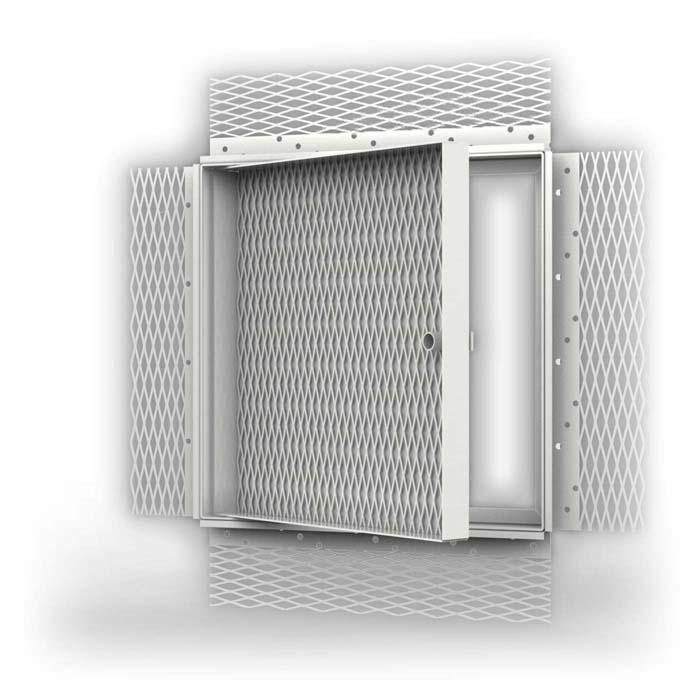

AP-5010

Features


  • Designed for use in acoustical plaster walls and ceilings



ItemMMRough OpeningLBSKGQTY
AP-5010 12 X 12305 X 305+ 3/8"8.53.9Add To Quote
AP-5010 18 X 18457 X 457+ 3/8"156.8Add To Quote
AP-5010 24 X 24610 X 610+ 3/8"2310.4Add To Quote
AP-5010 24 X 36610 X 914+ 3/8"3013.8Add To Quote

AP-5010


Product Features

  • Door is recessed 5/8" and is lined with self-furring lath
  • Expansion casing bead with 3" wide galvanized lath
  • Concealed, pivoting rod type hinge

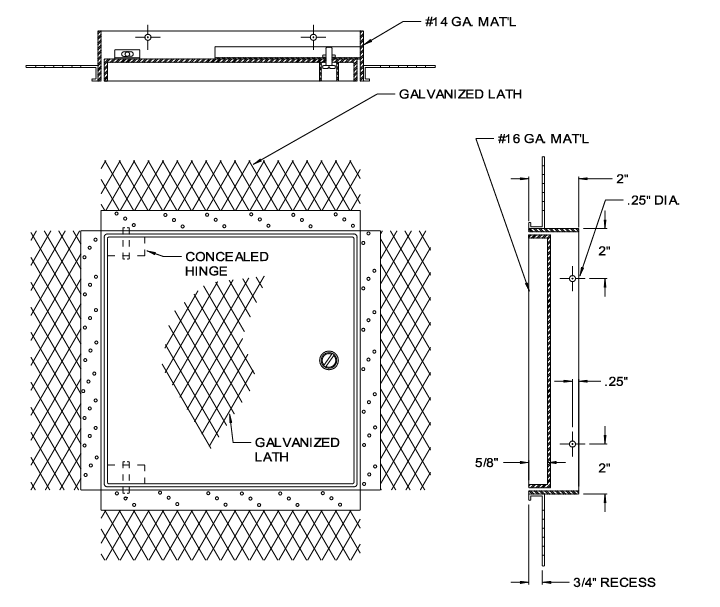

AP-5010 Access Door Specifications

Material: Steel

Door: 16 gauge recessed 5/8" lined with self-furring galvanized lath

Door Frame: 14 gauge expansion casing bead with 3" wide galvanized lath, recessed 3/4" to receive plaster

Hinge: Concealed, pivoting rod type. (For wall applications, a continuous exposed piano hinge is suggested.)

Standard Latch: Flush to surface, screwdriver operated cam latch

Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head cam latch

Finish:  Steel: 5-stage iron phosphate preparation with prime coat of White alkyd baked-on enamel



See the Datasheet for more product information.
