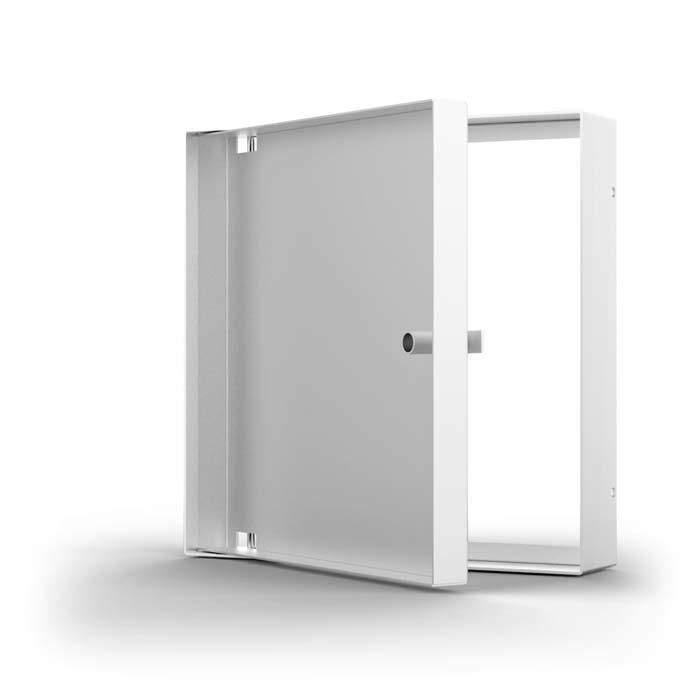

AT-5020

For flush installation in walls or ceilings when it is required to conceal the door panel

Item	MM	Rough Opening	LBS	KG
AT-5020 12 X 12	305 X 305	+ 3/8"	7	3.2	Add To Quote
AT-5020 18 X 18	406 X 406	+ 3/8"	13	5.9	Add To Quote
AT-5020 24 X 24	610 X 610	+ 3/8"	21	9.5	Add To Quote
AT-5020 24 X 36	610 X 914	+ 3/8"	30	13.8	Add To Quote

Product Features

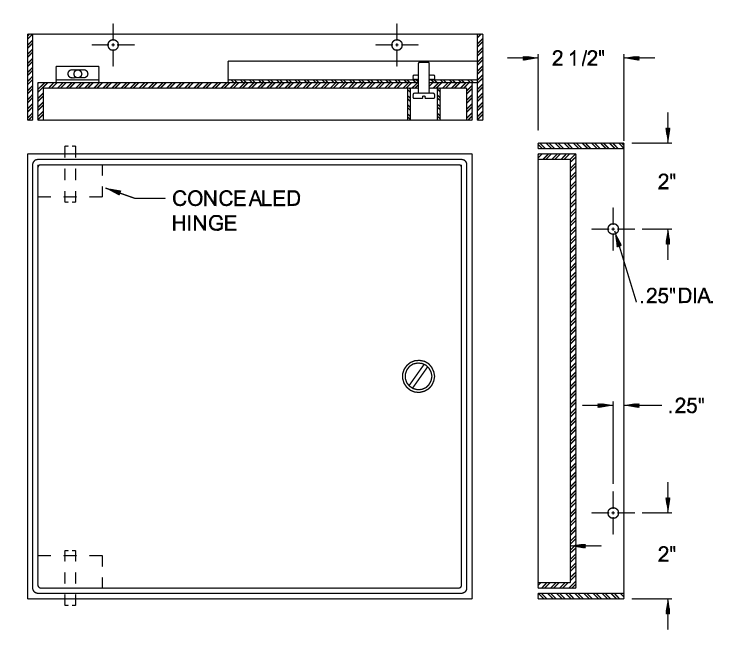

AT-5020 Access Door Specifications

Material: Steel

Door: 16 gauge, Recessed 1"

Mounting Frame: 14 gauge

Hinge: Concealed, pivoting rod type, for wall applications over 24”x24” we supply a concealed pin hinge

Standard Latch: Flush to surface, screwdriver operated cam latch

Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head cam latch

Finish: Steel: 5-stage iron phosphate preparation with prime coat of White alkyd baked-on enamel

See the Datasheet for more product information.
