Products / Access Panels / Acudor / Specialty Access Panels


SF-2000 SF-2000 SF-2000
Last Modified: 2019-03-04

SF-2000

Features


  • An innovative surface mounted access door for all types of walls and ceilings



ItemMMRough OpeningLBSKGQTY
SF-2000 8 X 8203 X 203- 1/4"2.9Add To Quote
SF-2000 12 X 12305 X 305- 1/4"41.8Add To Quote
SF-2000 16 X 16406 X 406- 1/4"62.7Add To Quote
SF-2000 24 X 24610 X 610- 1/4"146.4Add To Quote

SF-2000


Product Features

  • An exposed continuous piano hinge allows the door panel to open to 175 degrees
  • There is no frame to extend into the wall or ceiling
  • Perfect for access to odd size openings

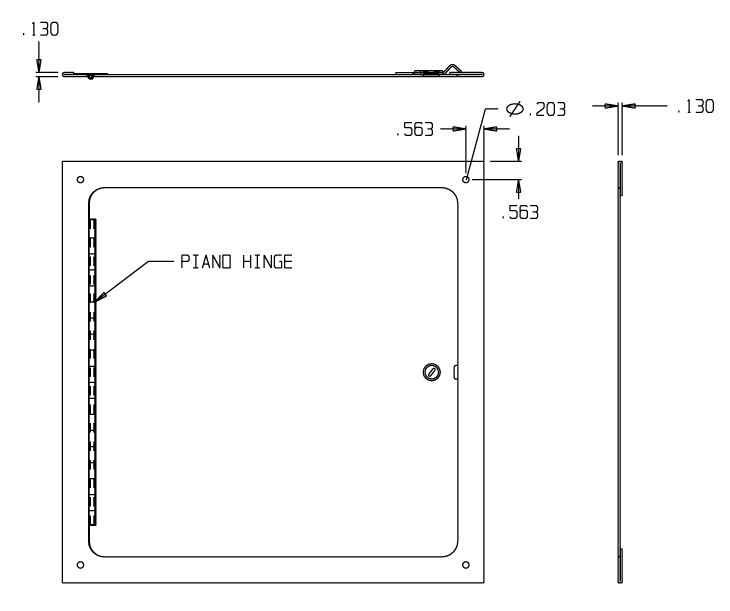

SF-2000 Access Door Specifications

Material: Steel

Door: 16 gauge, flush to frame with rounded corners, one piece outer flange

Mounting Frame: 16 gauge, one piece outer flange

Hinge: Exposed continuous piano hinge

Standard Latch: Stainless steel screwdriver operated cam latch

Optional Latches/Locks: Cylinder lock & key, allen head cam latch, spanner head cam latch

Finish:  5 stage iron phosphate preparation with White alkyd baked-on enamel



See the Datasheet for more product information.
