| Item | MM | Rough Opening | LBS | KG | QTY | |
|---|---|---|---|---|---|---|
| AS-9000 12 X 12 | 305 X 305 | + 3/8" | 6 | 2.7 | Add To Quote | |
| AS-9000 18 X 18 | 457 X 457 | + 3/8" | 11.5 | 5.1 | Add To Quote | |
| AS-9000 24 X 24 | 610 X 610 | + 3/8" | 19 | 8.4 | Add To Quote | |
| AS-9000 24 X 36 | 610 X 914 | + 3/8" | 28 | 12.4 | Add To Quote |
Product Features

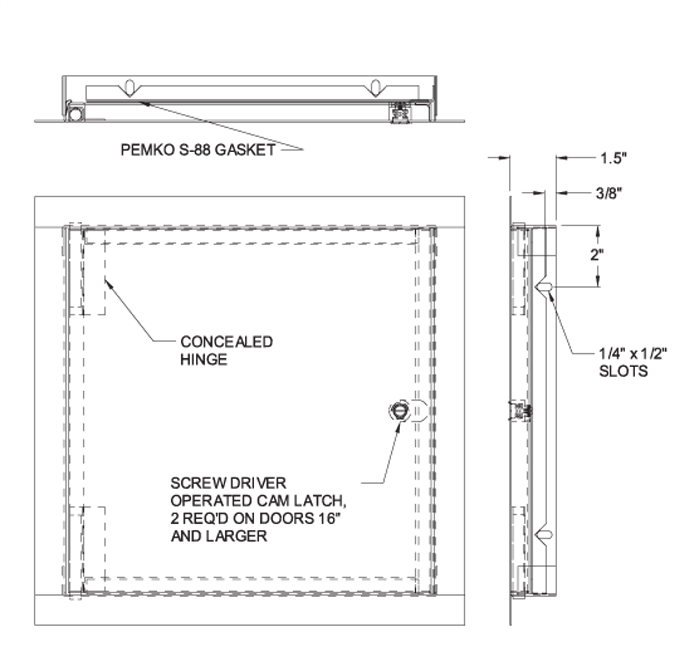

AS-9000 Access Door Specifications
Door / Door Frame: Stainless Steel or Steel: 18 gauge door, 18 gauge mounting frame, flange to be 1” wide
Hinge: Concealed
Gasket: Pemko S88 1/8” x 3/8” opened cell gasket
Standard Latch: Stainless steel screwdriver operated cam latch
Optional Latches/Locks: Cylinder lock & key, allen head cam latch, spanner head cam latch
Finish: Stainless steel: #4 satin polish. Steel: 5 stage iron phosphate with prime coat of White alkyd baked-on enamel
Please note the AS-9000 has not been tested for air penetration. For a door that has been tested for Air & Water penetration see the ADWT on page 11.
See the Datasheet for more product information.
